Colorbar In Information

This demo presents the colorbar in information scene in 2D and shows how the animation state evolves over time with lib-anim. The script defines a canva, adds the corresponding items, and updates them frame by frame to produce the final motion.

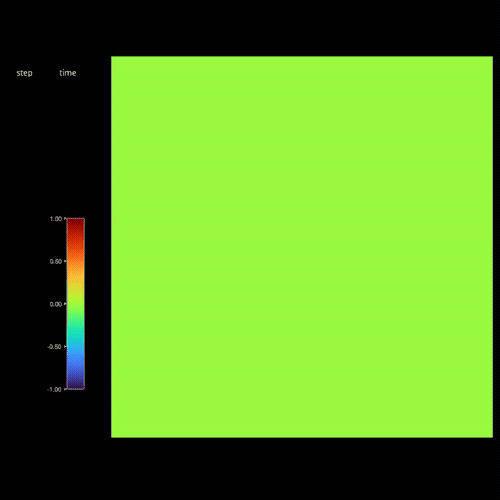

2D colorbar in information demo

Full Code

 1'''
 22D colorbar array demo
 3'''
 4
 5import numpy as np
 6import anim
 7
 8# ═══ 2D Animation canva ═══════════════════════════════════════════════════
 9
10class Canva(anim.plane.canva):
11
12  # ────────────────────────────────────────────────────────────────────────
13  def __init__(self, window, cmap):
14
15    # Number of pixels in the image
16    self.npix = 500
17
18    # Colormap
19    self.cmap = cmap
20
21    super().__init__(window,
22                     display_boundaries = False,
23                     pixelperunit = self.npix)
24
25    # ─── display
26
27    self.item.img = anim.plane.image(
28      position = [0.5, 0.5],
29      dimension = [1, 1],
30      array = self.phase(0),
31      colormap = self.cmap
32    )
33
34  # ────────────────────────────────────────────────────────────────────────
35  def phase(self, t):
36
37    # Base field
38    x = np.linspace(-0.5, 0.5, self.npix)
39    X, Y = np.meshgrid(x, x)
40    return np.angle(np.exp(t/(X + 1j*Y)/10))/np.pi
41
42  # ────────────────────────────────────────────────────────────────────────
43  def update(self, t):
44
45    self.item.img.array = self.phase(t.step)
46
47    # Confirm update
48    super().update(t)
49
50# ═══ Main ═════════════════════════════════════════════════════════════════
51
52W = anim.window('Colorbar animation')
53
54# colormap
55cmap = anim.colormap('turbo', range=[-1, 1])
56
57# ─── Information panel
58
59W.information.display(True)
60
61# This may be useful to setup the information canva dimensions
62# W.information.canva.display_boundaries = True
63
64# Set boundaries size
65W.information.canva.boundaries = [[0,1],[0,3]]
66
67W.information.canva.item.cbar = anim.plane.colorbar(
68  position = [0.8, 1],
69  dimension = [0.2, 2],
70  colormap = cmap,
71  ticks_number = 5,
72  ticks_fontsize = 0.1,
73  ticks_color = '#AAA'
74)
75
76# Add animation
77W.add(Canva, cmap=cmap)
78
79# Allow backward animation
80W.allow_backward = True
81W.allow_negative_time = True
82
83W.show()
