Colorbar In Canva¶

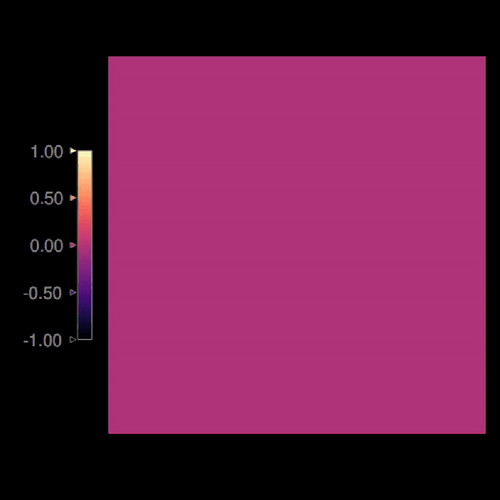

This demo presents the colorbar in canva scene in 2D and shows how the animation state evolves over time with lib-anim. The script defines a canva, adds the corresponding items, and updates them frame by frame to produce the final motion.
Full Code¶
1'''
22D colorbar array demo
3'''
4
5import numpy as np
6import anim
7
8# ═══ 2D Animation canva ═══════════════════════════════════════════════════
9
10class Canva(anim.plane.canva):
11
12 # ────────────────────────────────────────────────────────────────────────
13 def __init__(self, window):
14
15 # Number of pixels in the image
16 self.npix = 1000
17
18 # Colormap
19 self.cmap = anim.colormap('magma', range=[-1, 1])
20
21 super().__init__(window,
22 display_boundaries = False,
23 pixelperunit = self.npix)
24
25 # ─── display
26
27 self.item.img = anim.plane.image(
28 position = [0.6, 0.5],
29 dimension = [0.8, 0.8],
30 array = self.phase(0),
31 colormap = self.cmap
32 )
33
34 # ─── colorbar
35
36 self.item.cbar = anim.plane.colorbar(
37 position = [0.15, 0.5],
38 dimension = [0.03, 0.4],
39 colormap = self.cmap,
40 ticks_number = 5,
41 ticks_fontsize = 0.03,
42 )
43
44 # ────────────────────────────────────────────────────────────────────────
45 def phase(self, t):
46
47 # Base field
48 x = np.linspace(-0.5, 0.5, self.npix)
49 X, Y = np.meshgrid(x, x)
50 return np.angle(np.exp(t/(X + 1j*Y)/10))/np.pi
51
52 # ────────────────────────────────────────────────────────────────────────
53 def update(self, t):
54
55 self.item.img.array = self.phase(t.step)
56
57 # Confirm update
58 super().update(t)
59
60# ═══ Main ═════════════════════════════════════════════════════════════════
61
62W = anim.window('Colorbar animation')
63
64# Add animation
65W.add(Canva)
66
67# Allow backward animation
68W.allow_backward = True
69W.allow_negative_time = True
70
71W.show()
