Arrow

This demo presents the arrow scene in 2D and shows how the animation state evolves over time with lib-anim. The script defines a canva, adds the corresponding items, and updates them frame by frame to produce the final motion.

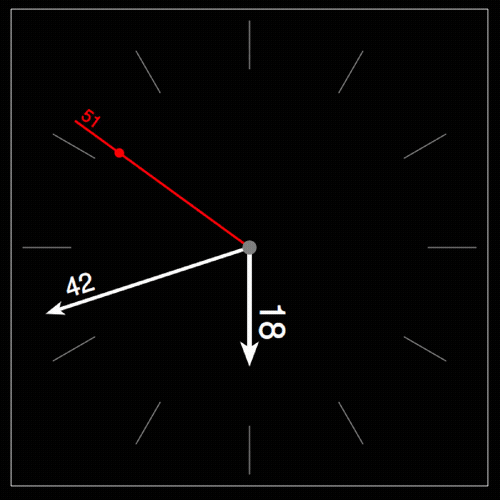

2D arrow demo

Full Code

  1'''
  22D arrow demo
  3'''
  4
  5import types
  6import datetime
  7import numpy as np
  8import anim
  9
 10# ═══ 2D Animation canva ═══════════════════════════════════════════════════
 11
 12class Canva(anim.plane.canva):
 13
 14  # ────────────────────────────────────────────────────────────────────────
 15  def __init__(self, window):
 16
 17    super().__init__(window, boundaries=[[-1,1], [-1,1]])
 18
 19    D = self.data()
 20
 21    # ─── Hours
 22
 23    self.item.hours = anim.plane.arrow(
 24        points = D.hp,
 25        string = D.h,
 26        thickness = 0.02,
 27        color = 'white',
 28        text_location = 0.70,
 29      )
 30
 31    # ─── Minutes
 32
 33    self.item.minutes = anim.plane.arrow(
 34        points = D.mp,
 35        string = D.m,
 36        thickness = 0.015,
 37        color = 'white',
 38        text_location = 0.85,
 39      )
 40
 41    # ─── Seconds
 42
 43    self.item.seconds = anim.plane.arrow(
 44        points = D.sp,
 45        string = D.s,
 46        thickness = 0.01,
 47        color = 'red',
 48        head_shape = 'disk',
 49        head_location = 0.75,
 50        text_location = 0.95,
 51      )
 52
 53    # ─── Decorations
 54
 55    self.item.center = anim.plane.circle(
 56      radius = 0.03
 57    )
 58
 59    r = 0.75
 60    for i in range(12):
 61     a = i*np.pi/6
 62     self.item[f'marker_{i}'] = anim.plane.line(
 63      position = [r*np.cos(a), r*np.sin(a)],
 64      dimension = [0.2, 0],
 65      orientation = a,
 66      zvalue = -1
 67    )
 68
 69  # ────────────────────────────────────────────────────────────────────────
 70  def data(self):
 71
 72    D = types.SimpleNamespace()
 73
 74    now = datetime.datetime.now()
 75    D.h = now.hour
 76    D.m = now.minute
 77    D.s = now.second
 78
 79    D.hp = [[0,0], [-0.5*np.sin(-D.h/6*np.pi), 0.5*np.cos(-D.h/6*np.pi)]]
 80    D.mp = [[0,0], [-0.9*np.sin(-D.m/30*np.pi), 0.9*np.cos(-D.m/30*np.pi)]]
 81    D.sp = [[0,0], [-0.9*np.sin(-D.s/30*np.pi), 0.9*np.cos(-D.s/30*np.pi)]]
 82
 83    return D
 84
 85  # ────────────────────────────────────────────────────────────────────────
 86  def update(self, t):
 87
 88    D = self.data()
 89
 90    self.item.hours.string = D.h
 91    self.item.hours.points = D.hp
 92
 93    self.item.minutes.string = D.m
 94    self.item.minutes.points = D.mp
 95
 96    self.item.seconds.string = D.s
 97    self.item.seconds.points = D.sp
 98
 99    # Confirm update
100    super().update(t)
101
102# ═══ Main ═════════════════════════════════════════════════════════════════
103
104W = anim.window('Arrow animation')
105
106# Add animation
107W.add(Canva)
108
109W.show()
